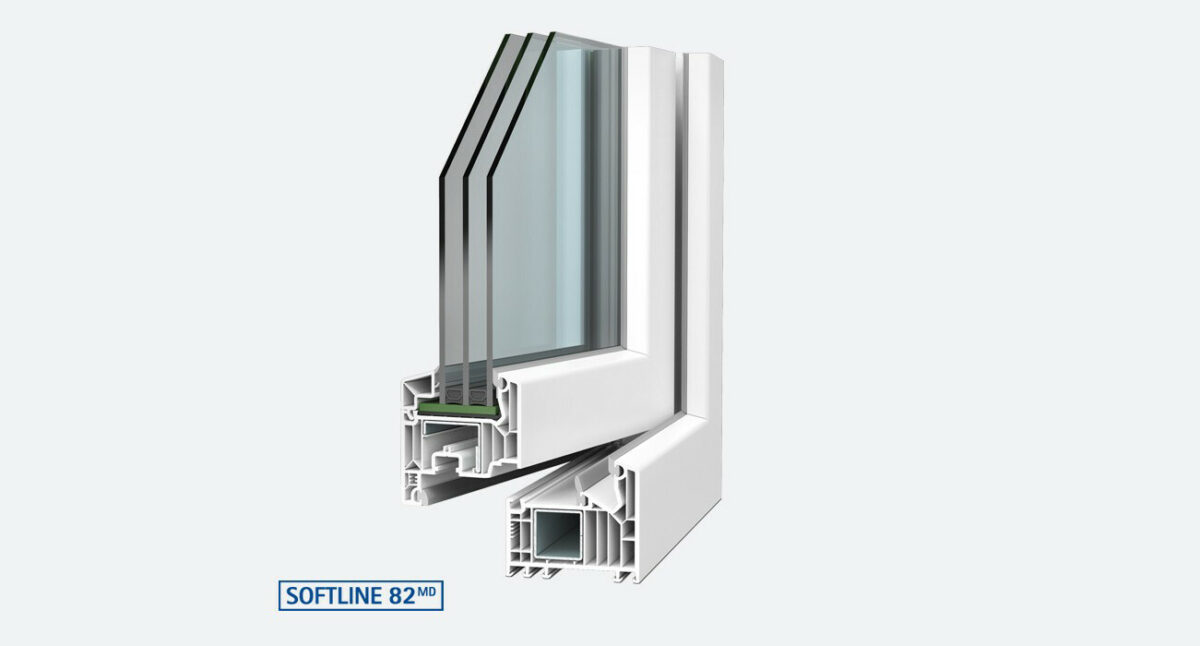

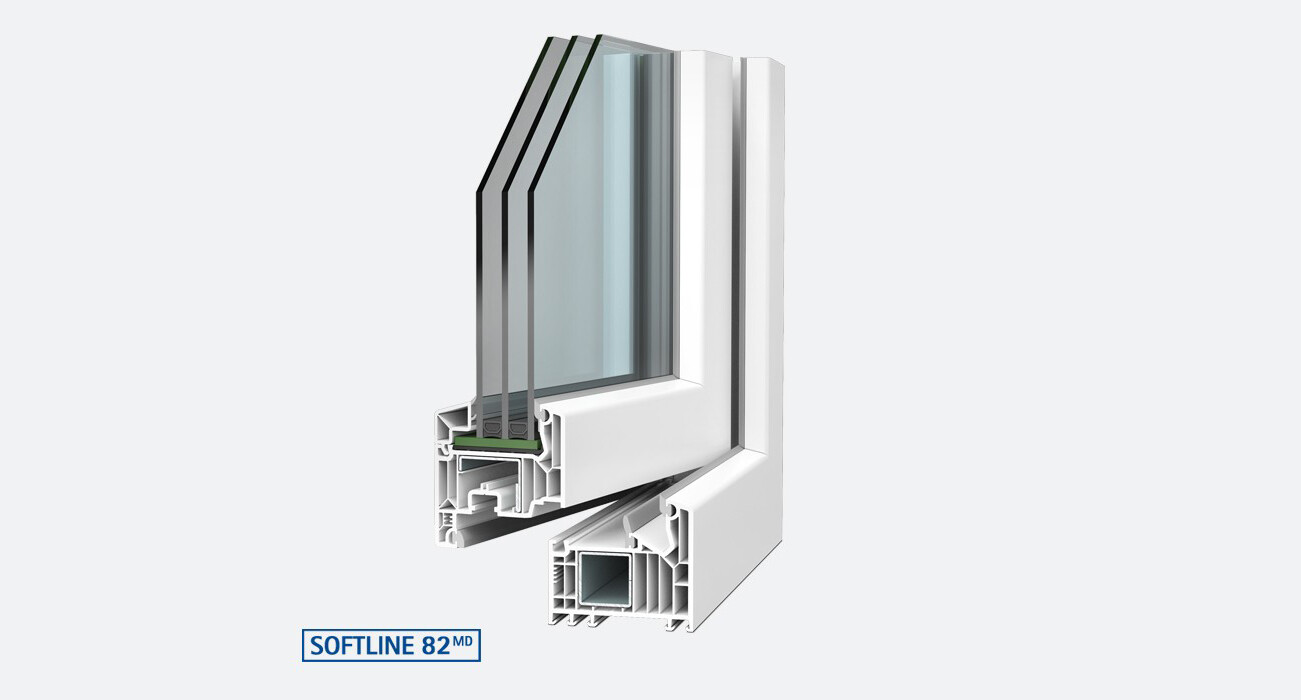

PVC BUILDING JOINERY SOFTLINE 82 MD

General characteristics
  • For all types of windows, regular or sliding doors
  • Thermal insulation
  • Noise protection
  • Burglary protection
  • Double sealing on the sash, single on the frame
  • Triple sealing for better sound and thermal insulation
  • Rotating handles – half handles of your choice
Technical characteristics
  • System sealing profiles made of APTK, TPE, or silicone

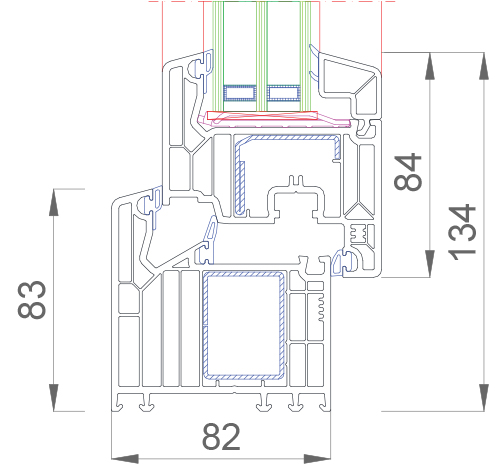

  • Seven-chamber profile, installation depth of 82 mm
  • Wall thickness of 3 mm according to RAL standards, highest class A
  • Steel reinforcement according to VEKA standards
  • Double or triple glazing 36 mm, possibility of 24–44 mm
  • Built-in standard fittings WINKHAUS Pilot Basis
Additional features
  • Heat transfer: Uframe = 1.0 W/m K, Uwindow = from 0.79 W/m K
  • Installation width = 82 mm
  • Comprehensive system – also for entrance doors
