Pleated insect screen
General characteristics
- New to our product range
- Extremely easy to use and maintain
- Particularly suitable for larger openings – sliding doors, etc.
- Very low threshold (bottom profile) allows easy passage
- Provides an exceptionally high level of protection against nuisance flying insects.
*Does not provide 100% protection against crawling insects.
Technical specifications
- Powder-coated aluminium
- Standard hardware colours: white, brown, grey, anthracite, DB703 (wood-effect finish, RAL colour of your choice – at an additional charge)

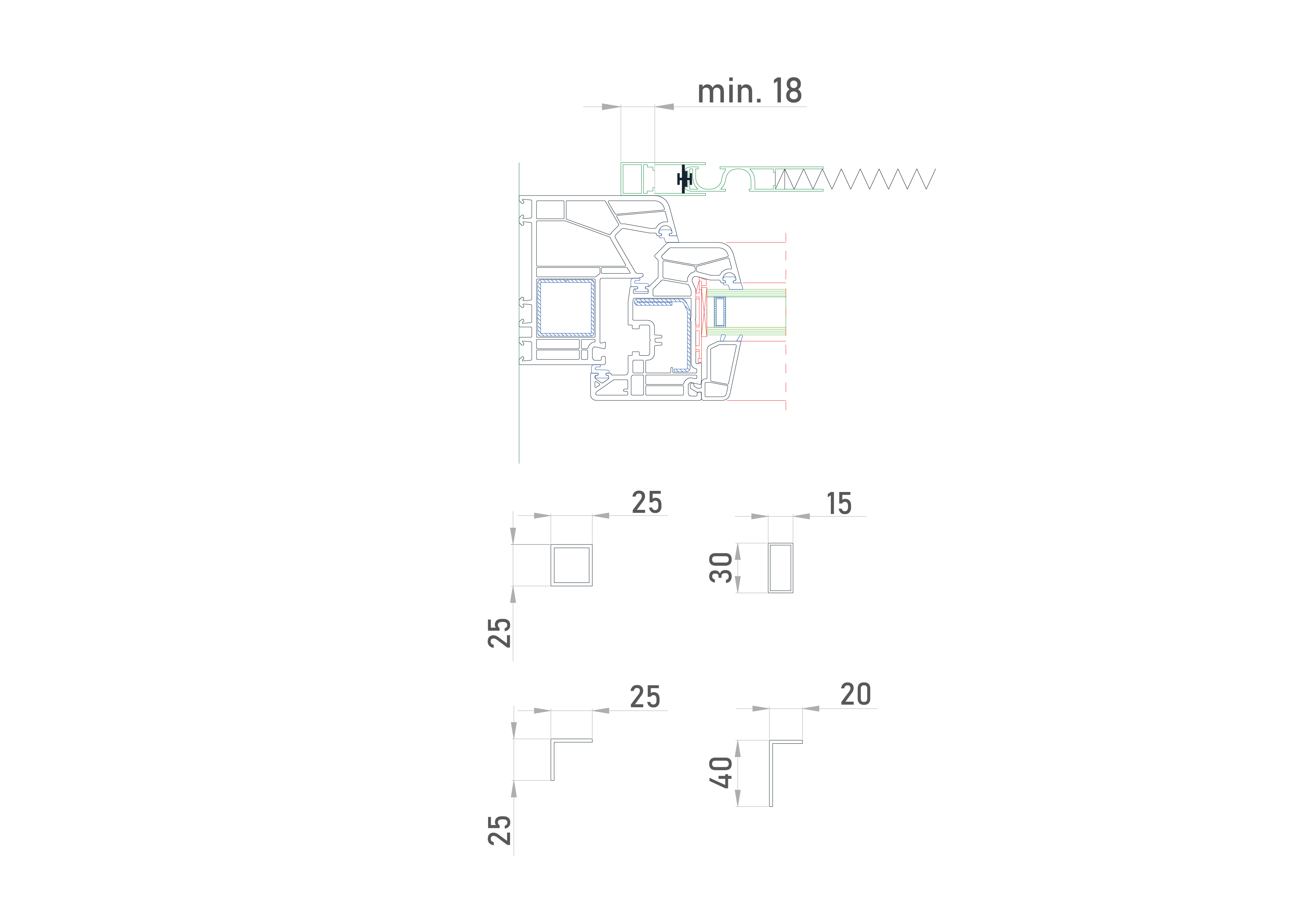

- Can be installed under shading systems (profile depth 25 mm)
- Single pleated insect screen – max. width 240 cm, closes from the left or right
- Double pleated insect screen – max. width 480 cm, closes towards the centre

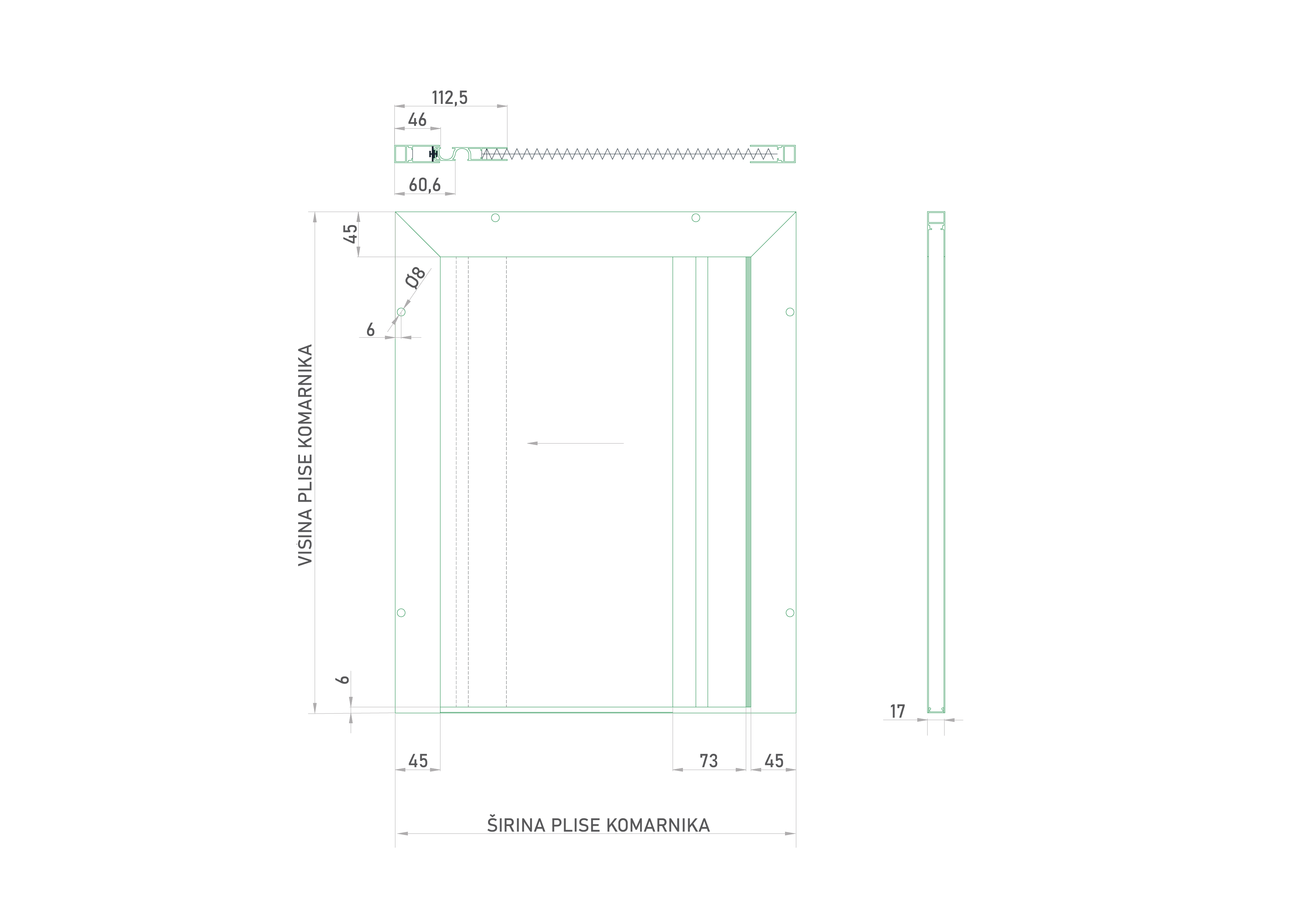

Marginal values
Thickness 17 mm:
max. 240 cm
max. 480 cm (double)
max. 260 cm
