KRATER 2G ®
The Krater system is an in-house innovation by Roletarstvo Medle. It is the result of modern development, combining immediate usability with universal installation, independent of the façade. The new KRATER 2G brings numerous technical improvements and advanced solutions that ensure long-lasting reliability and a premium appearance for your home. The new extruded aluminum casing provides greater structural strength, long-term durability, and perfect color matching with other elements, completing the visual integrity of the system.
General characteristics
- Immediate use – allows shading even before the façade is completed
- Stronger construction – stability even at greater heights and lengths
- Extruded profiles – for improved structural stability
- Optimized construction – reduces sagging and ensures straightness
- Casings without front joints – cover attached from the side
- All guides with seals as standard – for improved sealing
- Maximum functionality – with premium details
- Elegant design – harmonized with modern architectural trends

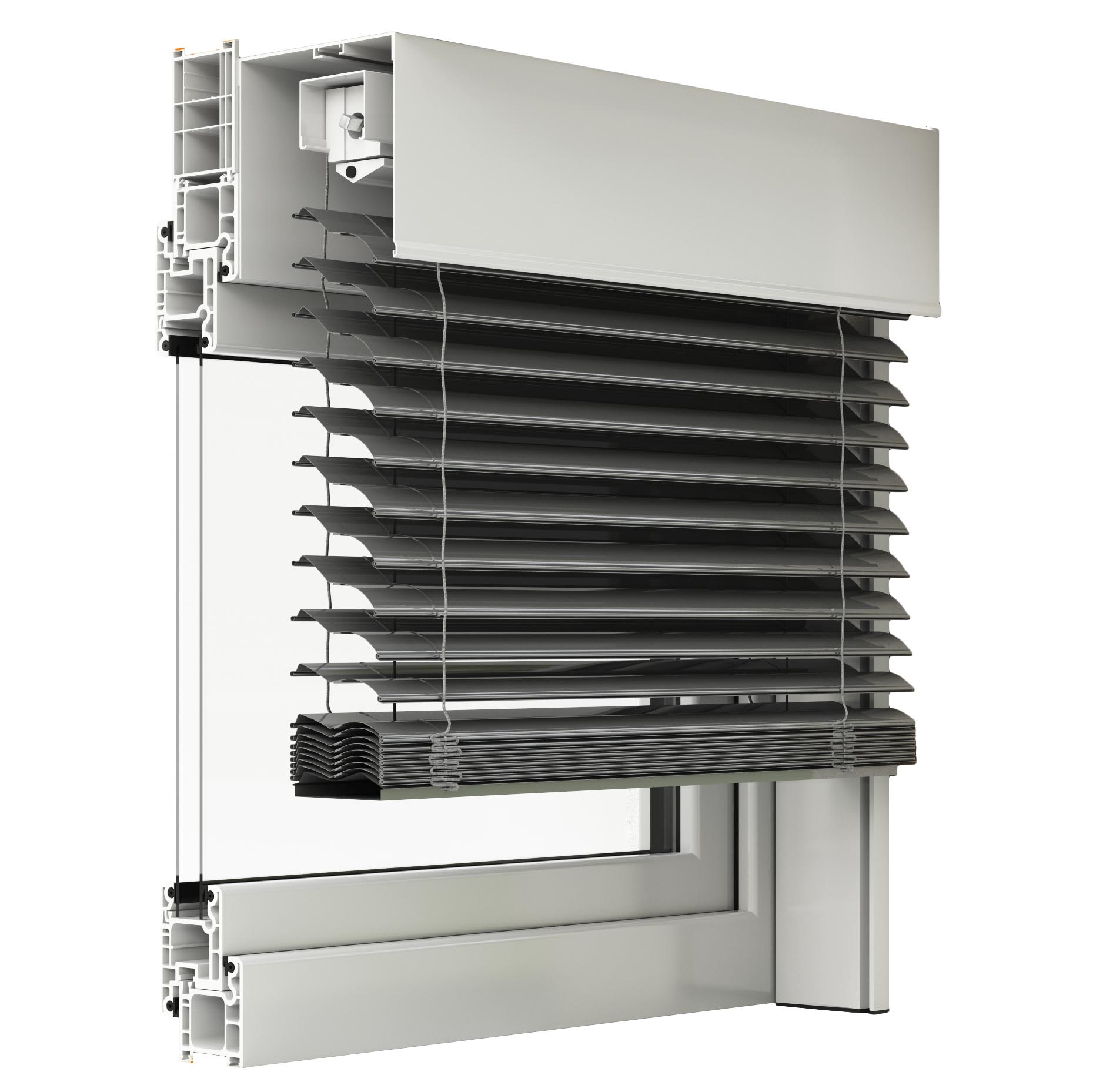

Advantages of the Krater 2G Exterior Venetian Blind
- Thickness 2 mm – for long-lasting durability
- Casing size: 130 or 150 mm
- Casing heights: 170, 210, 250 mm (with adapter: 220, 260, 300 mm)
- Visible or under plaster installation

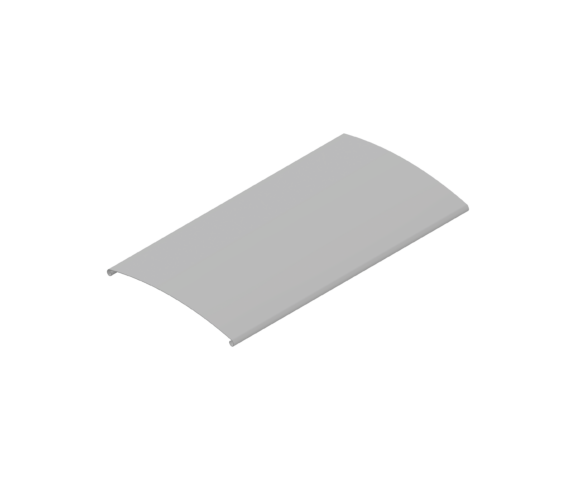

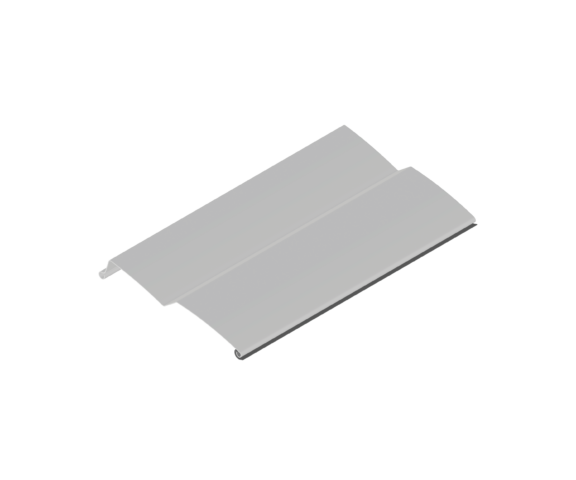

- Available with ZX-90 and C-80 slats
- Option to install a mosquito screen
Marginal values
min. 60 cm
max. 350 cm
min. 60 cm
max. 430 cm
max.
9,0 m2
wind
class 3
SLATS
OPERATION
INSECT SCREENS
COLOUR SAMPLES
Colours of samples on screens may differ from reality. To experience colours more accurately, we recommend visiting our showroom.
Colour samples of slats C-80, ZX-90
Price class PC1
10-SILVER RAL9006
13-WHITE
66-CHOCO BROWN RAL8019
90-GREY RAL9007
52-DB 703
42-ANTHRACITE RAL7016
Price class PC2
51-PEARL BROWN
28-AGATE GREY RAL7038
25-BEIGE
01-CHOCOLATE BROWN RAL8017
02-GREY BEIGE RAL1019
08-GOLD
17-GREY WHITE RAL9002
26-LIGHT IVORY RAL1015
41-GRAPHITE RAL7024
43-ANTICO GRIGIO
44-BASALT GREY RAL7012
67-BROWN
29-LIGHT GREY RAL7035
Price class PC3
87-GREEN RAL6005
04-BLUE RAL5009
07-RED RAL3020
11-GREEN RAL6019
14-CREAM RAL9001
15-JET BLACK RAL9005
16-GOLDEN OAK
18-CLAY BROWN RAL8003
19-NUT BROWN RAL8011
27-OYSTER WHITE RAL1013
32-BURGUNDY RED RAL3003
45-DUSTY GREY RAL7037
47-WINE RED RAL3005
76-PIGEON BLUE RAL5014
79-DARK BLUE RAL5002
49-WHITE RAL9010
30-PLATIN GREY RAL7036
46-MOUSE GREY RAL7005
48-QUARTZ GREYRAL7039
80-PEARL MOUSE GREY RAL7048
53-BRUSHED 53
54-BRUSHED 54
Price class PC4
39-SILVER PERFORATED (C-80 only)
99-COLOR OF YOUR CHOICE
