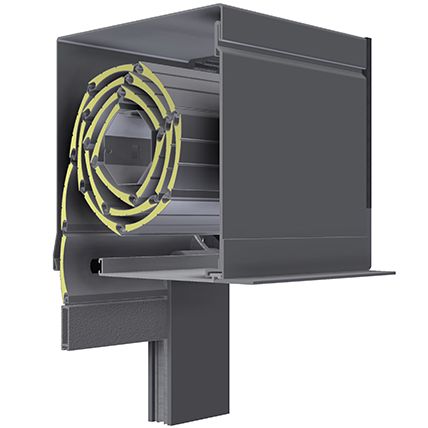

CONCEALED 90°

Concealed 90° front-mounted roller shutter with an aluminum box ensures excellent thermal and sound insulation as well as long service life. The box is fully enclosed, featuring a bottom revision cover and a support bracket made of extruded aluminum. Brushes prevent insect intrusion, while the built-in brake in the integrated insect screen allows for smooth lifting.
General characteristics
- Concealed front-mounted roller shutter
- Installed when the roller shutter should not alter the exterior appearance of the building
- Requires prior planning
Technical specifications
- Features a flat bottom service cover “bent” at a 90° angle
- Service cover made of extruded aluminum
- Invisible from the sides
Marginal values
min. 60 cm
max. 270 cm
min. 60 cm
max. 340 cm
max.
7,0 m2
wind
class 4

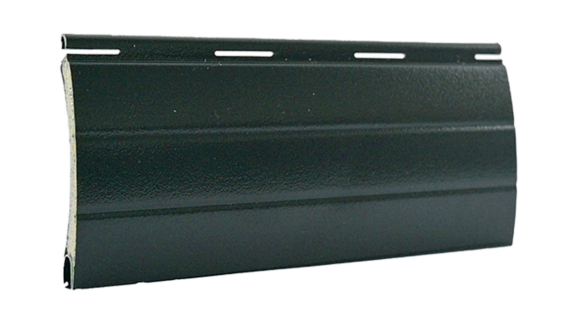

SLATS
MANIPULATION
INSECT SCREEN
Possibility of installing insect screens.
COLOR SAMPLES
Colors of samples on screens may differ from reality. For a better representation of colors, we recommend visiting our showroom.

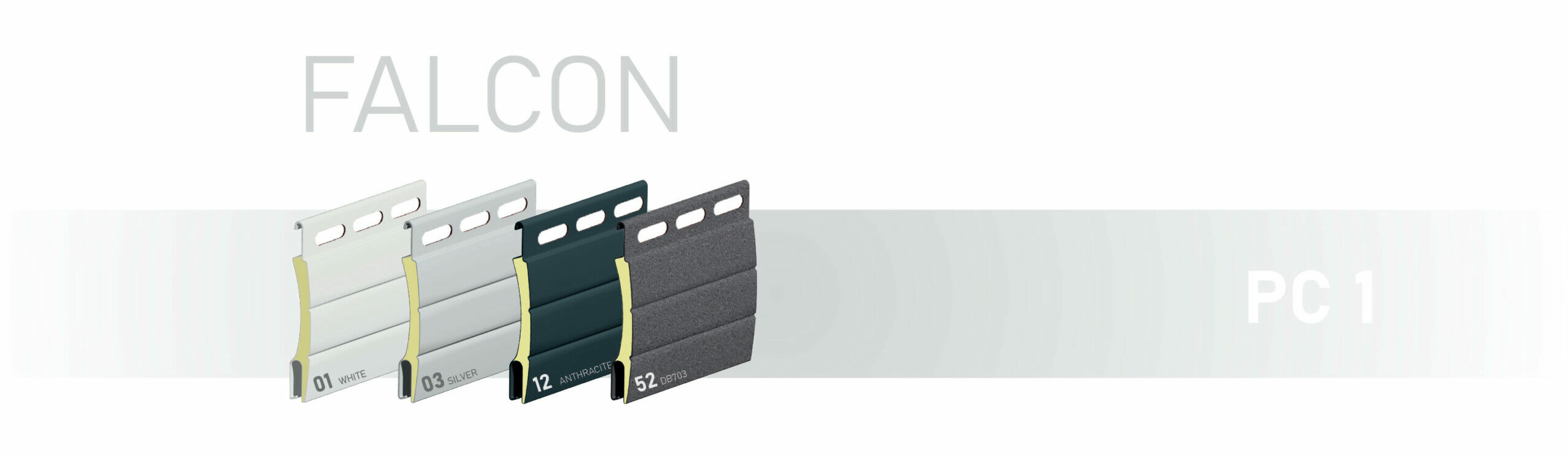

Color samples of FALCON slat
Price class PC1
01-WHITE RAL9010
03-SILVER RAL9006
12-ANTHRACITE RAL7016
52-DB 703
Color samples of FALCON PERFO slat
Price class PC1
01-WHITE RAL9010
02-D.CHOCO RAL8019
03-SILVER RAL9006
12-ANTHRACITE RAL7016
52-DB 703
04-BEIGE
11-ANTICO GRIGIO
14-GREY RAL9007

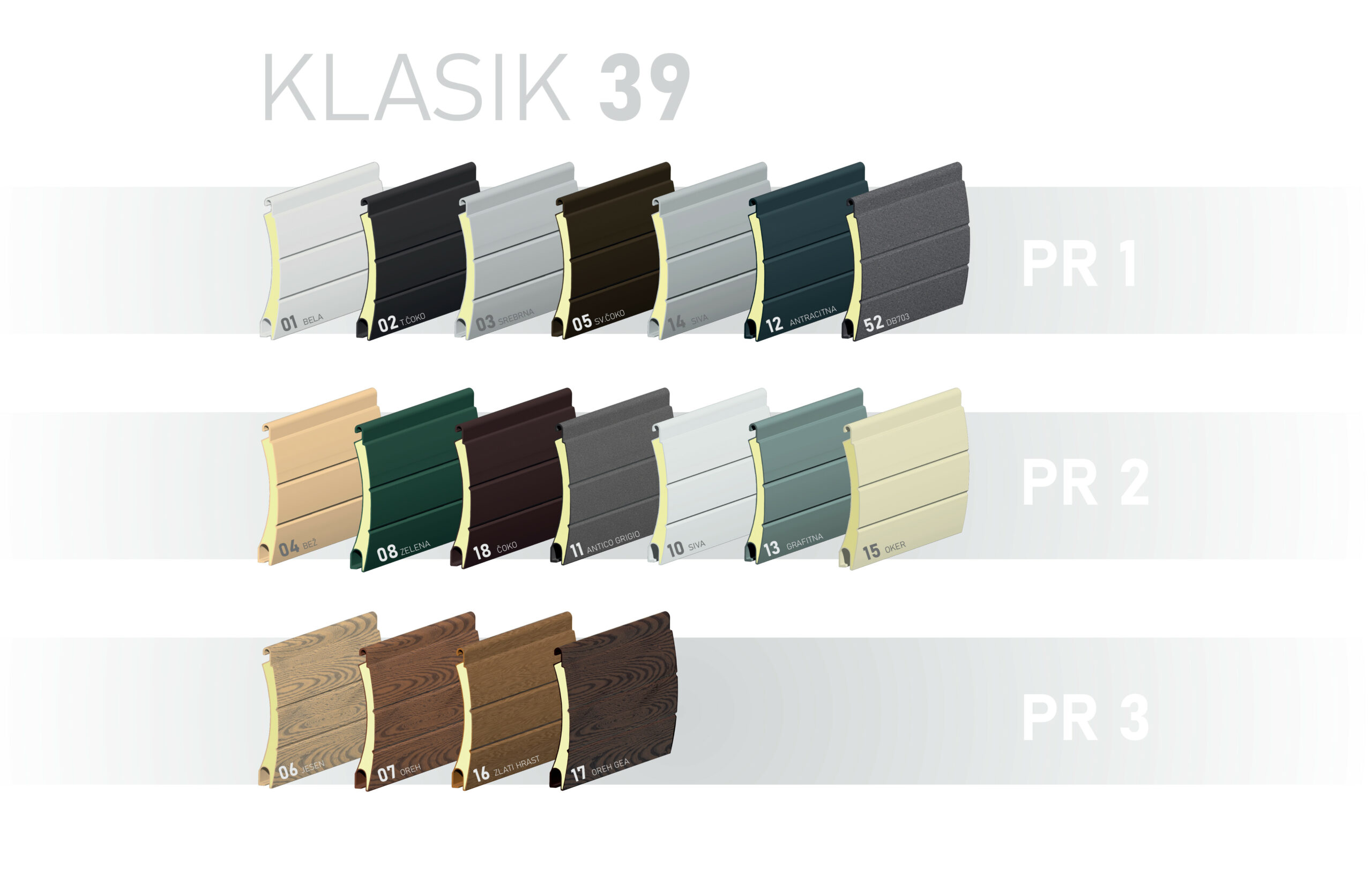

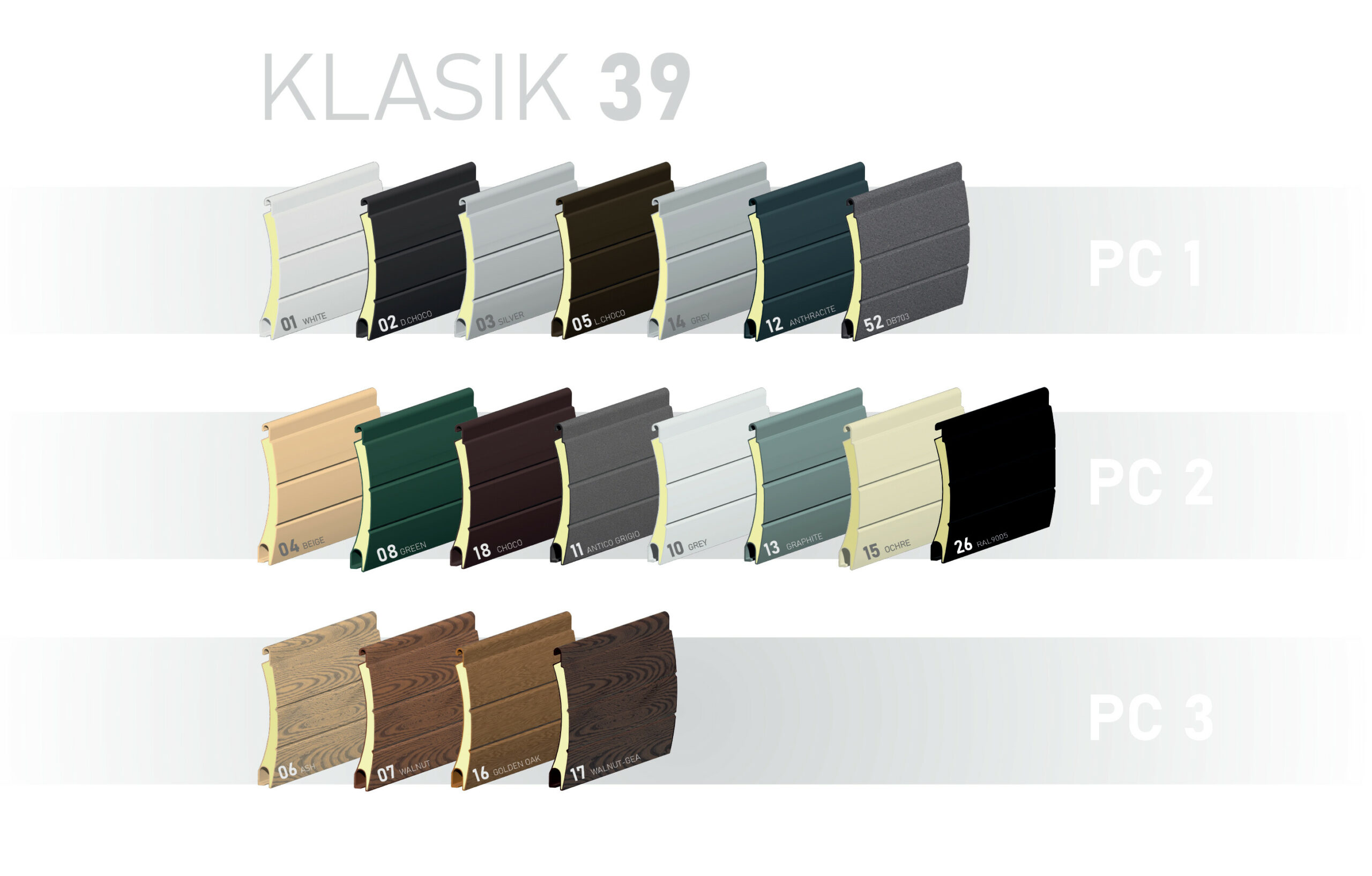

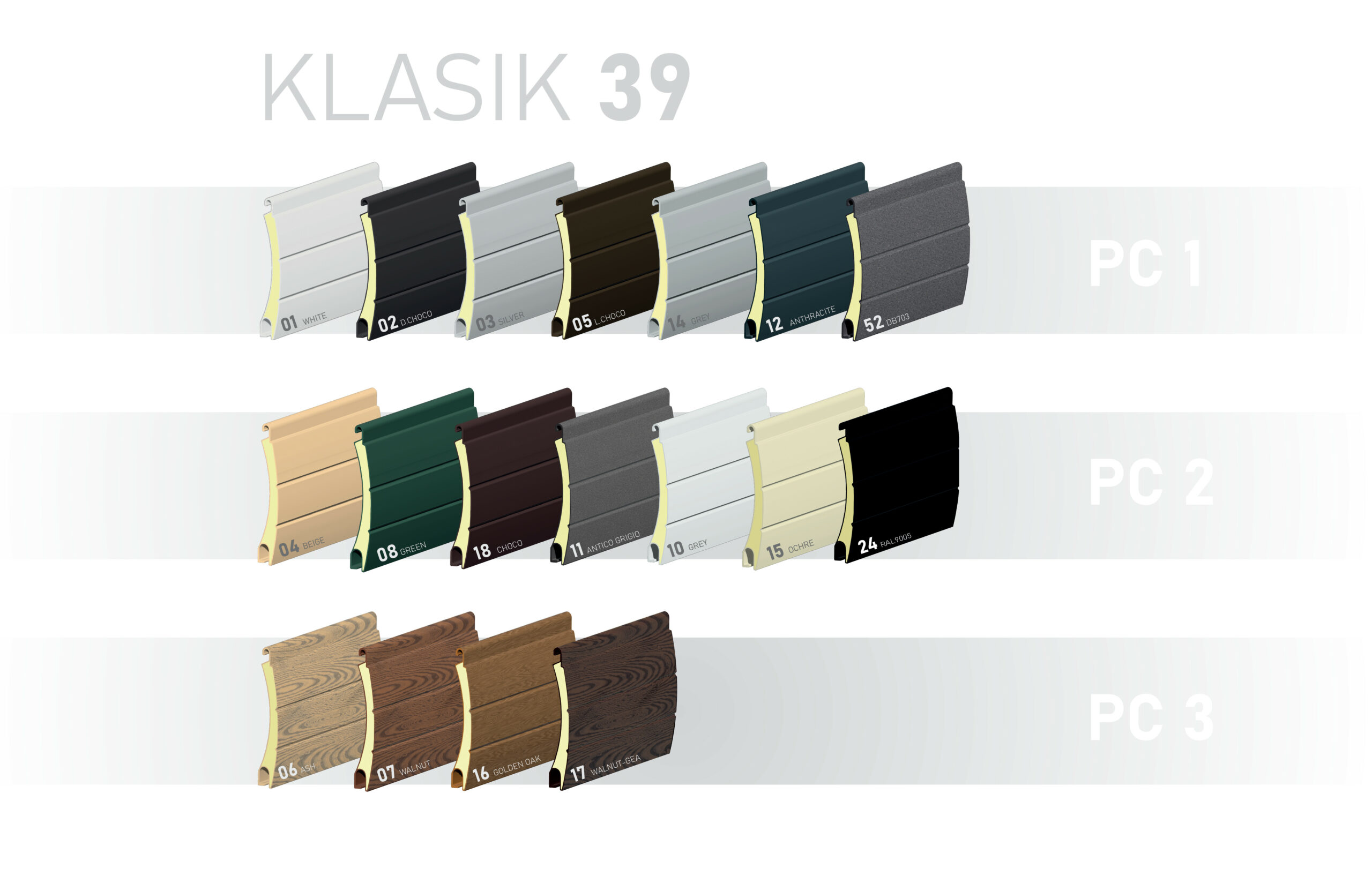

Color samples KLASIK 39
Price class PC1
01-WHITE RAL9010
02-D.CHOCO RAL8019
03-SILVER RAL9006
05-L.CHOCO RAL8014
14-GREY RAL9007
12-ANTHRACITE RAL7016
52-DB 703
Price class PC2
04-BEIGE
08-GREEN RAL6005
18-CHOCO RAL8017
11-ANTICO GRIGIO
10-GREY RAL7038
13-GRAPHITE RAL7012
15-OCHRE
Price class PC3
06-ASH
07-WALNUT
16-GOLDEN OAK
17-WALNUT-GEA
